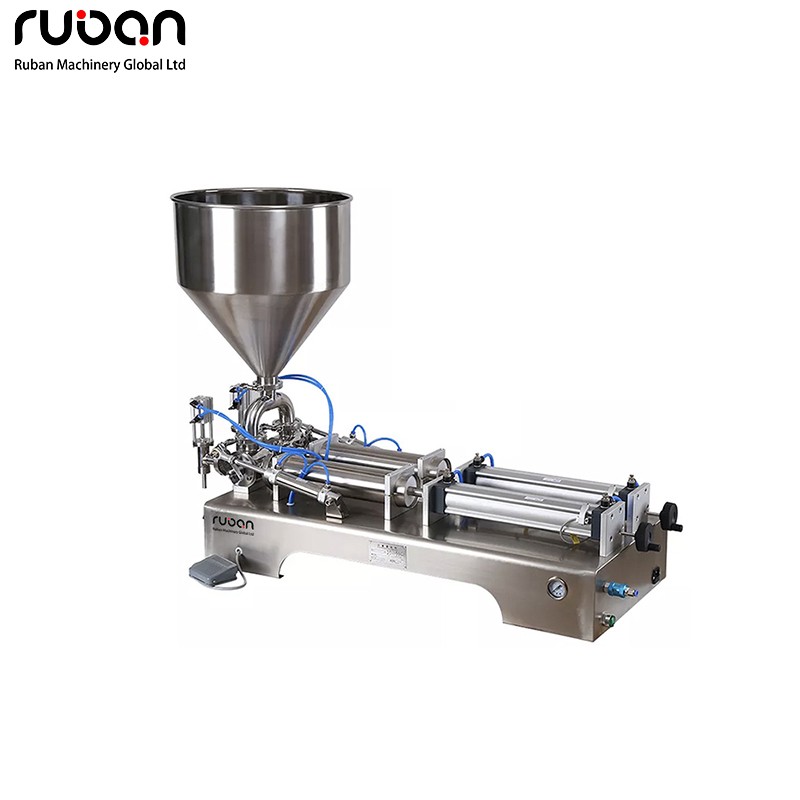

This is a horizontal pneumatic paste filling machine with a main body made of stainless steel. It is equipped with a conical stainless steel hopper on the top for storing materials. The machine body integrates pneumatic pipelines (blue hoses), a piston-type filling actuator and control components, and is provided with an operating pedal and instrument devices at the bottom, featuring an overall single-head and double-head horizontal structure design.
Dimension(mm) :
900*400*700Hopper Capacity(L) :
30Voltage(V) :
220Power :
200wOur Liquid Filling Machine Features:
1. Working Principle
Compressed air drives the piston to reciprocate, which quantitatively draws and pushes the paste/viscous liquid from the hopper into the container. The filling volume is precisely controlled by adjusting the pneumatic stroke or throttling elements.
2. Usage Features
The stainless steel body is corrosion-resistant and easy to clean, complying with food and pharmaceutical hygiene standards; foot pedal control enables single-person operation to improve filling efficiency; it is suitable for filling bottles, cans, bags and other containers, and can adapt to different material viscosities by replacing filling head accessories.
| Dimension(mm) | Hopper(L) | Filling Range(ml) | Filing precision | Speed | Air pressure | Volt(v) | Power(w) |
| 900*400*700 | 30 |
10-100 30-300 50-500 100-1000 500-2500 1000-5000 |
≤±1% | 1-30 bottles/min | 0.4-0.9mpa | 220 | 200 |
| 900*400*700 | 30 | ≤±1% | 1-30 bottles/min | 0.4-0.9mpa | 220 | 200 |
